Sensor type: Electrochemical sensor
Automatic inhalation: air blowing through the air, the results are quick, clean and hygienic.
Multiple alarms: sound light alarm and vibration prompt
Strong lighting: long distance white light highlight lighting and stroboscopic lighting
High single alarm: one click to start electronic alarm
Red and blue flashing: red and blue light warning and alert
Emergency window breaker: tungsten steel window breaker, safe and fast
Strong magnetic attraction: convenient and fixed in car body. enclosure. Warning signs
High energy battery: 3000mAh high capacity. Continuous wine testing for more than 500 times

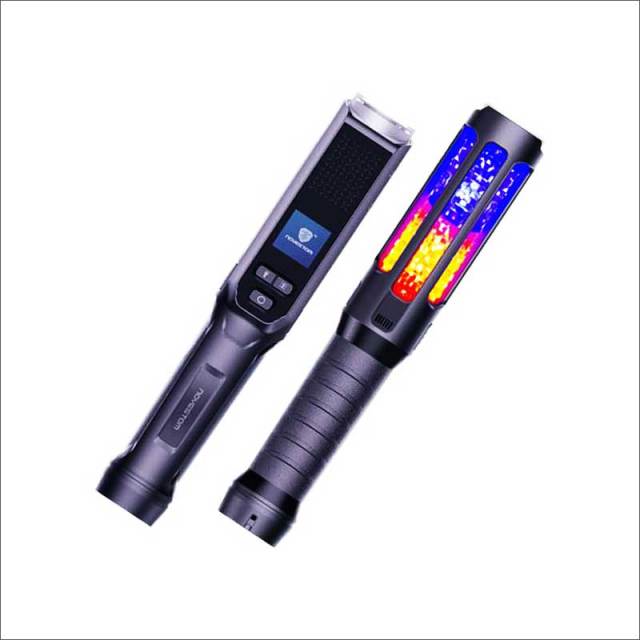

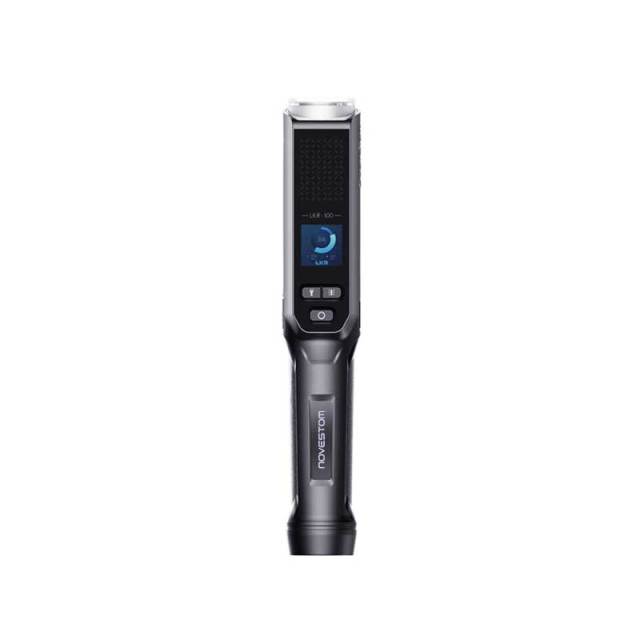

Overview for Breath Alcohol Tester & Breathalyzer & Baton LKR-100

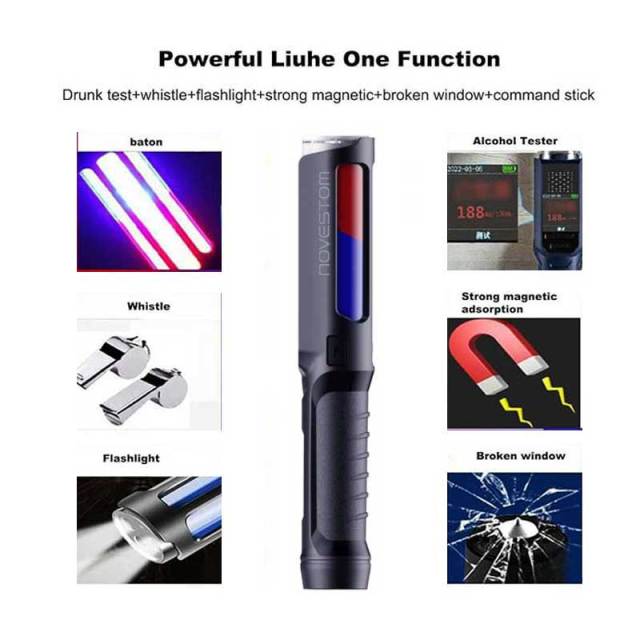

The LKR-100 Breath Alcohol Tester-Breathalyzer-Baton has an excellent design and integrates multi-item law enforcement and detection equipment, completely replacing a single traditional detector. This product is safe and hygienic, and does not need to be put in the mouth. Just blow gently for rapid screening and testing, baton flash video warning, vibration reminder, long-distance white light strong light lighting and strobe lighting, strong magnet installation and placement, one-button start electronic alarm, red and blue light warning alarm, tungsten steel window breaker, safe and fast, etc.
Button Function for Breath Alcohol Tester & Breathalyzer & Baton LKR-100
1. USB interface | 2. Strong lighting | 3. Speaker | 4. Microphone | 5. Lighting button | 6. Battery cover | 7. Strong magnetism | 8. Broken window | 9. Detect button | 10.Waming light button | 11. Display | 12. Blow holes | 13. Strong lighting | 14. Red & blue warming light | 15. Whistle button | 16. Vent | 17. Whistle sound hole | 18. Lanyard hole
Parameters for Breath Alcohol Tester & Breathalyzer & Baton LKR-100
| Sensor type | Electrochemical sensor |
| Measurement mode | Quick check and automatic detection |
| Pumping mode | Continuous pumping, continuous pumping when working, the measurement can be suspended at any time according to the need |
| measuring range | 0~200mg/100mL BAC |
| sensitivity | 1mg/100mL BAC |
| Unit of measurement | Mg / L (BrAC) and Mg / ml (BAC) are optional |
| Display mode | 1.29 "OLED color display |
| Operation form | Menu style |
| Key | Four keys: alarm light key, alcohol detection key, lighting key and whistle key. The four keys have independent functions |
| measurement accuracy | When the strength of standard gas is 50mg / 100ml BAC: |
| A. When the blowing distance is less than 5cm: ± 5.0mg/100ml | |
| B. When the blowing distance is 5 ~ 10cm: ± 6.0mg/100ml | |
| C. When the blowing distance is more than 10cm: ± 10.0mg/100ml | |
| Measuring time | Adjustable from 1 to 15 seconds |
| environment condition | Operating temperature range: 0 ~ 50 ℃ |
| Environmental humidity: 20 ~ 98% | |
| Atmospheric pressure: 600 ~ 1400hpa | |
| Use batteries | 18650 lithium battery: 4.35v/3000mah, more than 500 times of continuous alcohol test |
| weight | 263g including battery |
| power waste | Normal operation 120mA, light on 300mA |
| Using sensors | 8mm fuel cell sensor |
| Flashlight function | Highlight white light |
| Baton function | Red and blue light is always on, stroboscopic and interactive flash functions can be switched at will |
| size | Length * diameter: 261 mm * 45 mm |
| Power saving mode | The instrument will automatically shut down in 5 minutes under the condition of wine test, but not in the mode of flashlight and baton |
