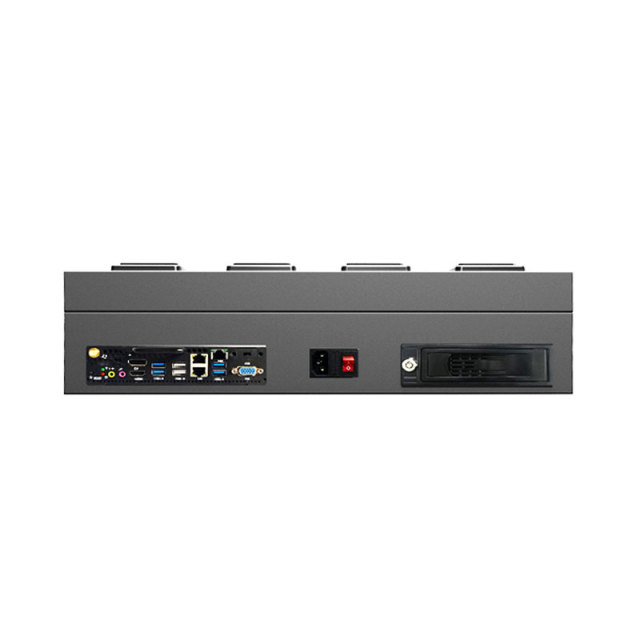

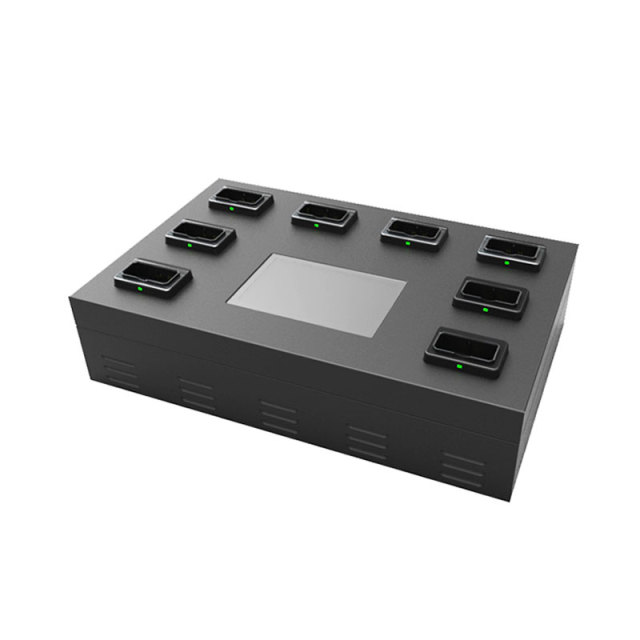

NVS10-C 8ports Desktop Docking Station Short Description:
Police camera docking station is the latest charging and data uploading device, which can connect up to 8 cameras, via USB3.0 port, compatible with the most of police body cameras in the market.In addition to total power of docking reach 120 W, each port can provide up to 2.0A of self- adaption current, according to the connected devices.Users only need an office computer, without cumbersome wiring. It features multi-device data collection and charging.
NVS10-C 8ports Desktop Docking Station parameters:
| Parameter | ||||||||
| Screen | 7 inch TFT LCD touch screen | |||||||
| System | Window 10 | |||||||
| CPU | J1900 / Intel I3 7th Generation (optional ) | |||||||
| Harddisk 1 | Standard 4TB removable HDD 3.5 inch | |||||||
| Harddisk 2 | Standard 128GB built-in SSD | |||||||
| RAM | 8GB | |||||||
| Interface | 1X Rj45, 4X USB, HDMI, VGA, Audio | |||||||
| Input | 100-120V AC 2.0A, 200- 240V AC 1.2A (Optional) | |||||||
| Feature | All-metal structure, it is durable and tough Fully compatible with USB2.0 and USB3.0 With dual protection on the output, it can protect your connected device from overload Support overload voltage and instantaneous current protection Each port provides up to 2.0A current |
|||||||
| Dimension | 510mm*310mm*130 mm | |||||||
| Weight | 8 kgs | |||||||
| Accessories | Power cable x 1 User Manual x 1 | |||||||
Digital Evidence Management Software (Client) :
Data Upload: To collect video/photos/log files from police body worn Cameras.
User Management: To bind camera with specified user account.
Data Management: Easily search the specified data with date or keyword.
OS Compatibility: Database SQL2012 Compatible with WIN10/8/7
