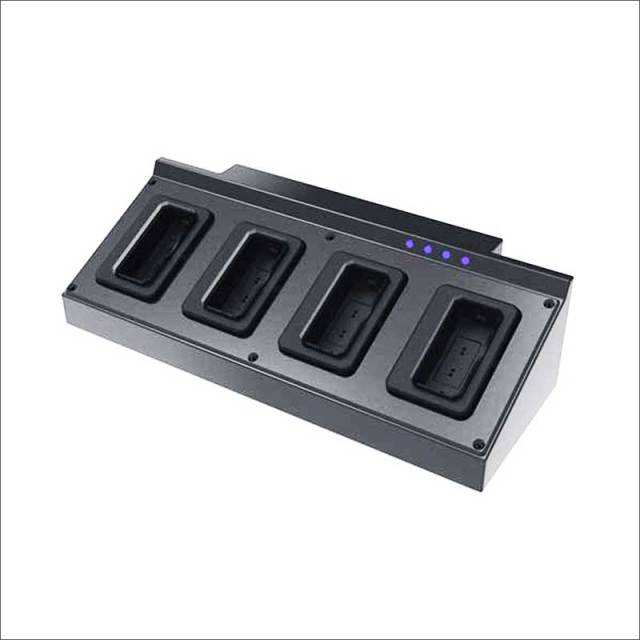

NVS10-4 4ports Desktop Docking Station Features:
- Fully compatible with USB2.0 and USB3.0 interfaces.
- Equipped with overload voltage and transient current protection. Each port provides up to 2.0A of current.
- 4 fixed slots for body worn camera or military tactical helmet camera.
- 4 LEDs for connecting body worn camera or Military tactical helmet camera indicators.
- USB connector for stable connection.
- 4 pads for supporting the docking station.
- Motherboard vents. Effectively control overheating.
- The main switch can turn on or off the entire docking station system.
NVS10-4 4ports Desktop Docking Station Short Description:
NVS20 Police body worn cameras Docking station is a dock station that can charge and upload 20pcs cameras at the same time.
It includes a touch-screen, hard disk and 20pcs USB 5pin cable.
NVS10-4 4ports Desktop Docking Station parameters:
| Name | Docking Station NVS10-4 |
| Function | Multi-units uploading and charging |
| Maximum number of connections | 4 |
| Voltage of each port | 5V |
| Maximum current of each port | 2.0 A, adaptive according to the connected device |
| Output | USB 2.0 |
| Maximum Input power | 40W |
| Net size | 29.5cm x12.5cm x 8cm |
| Net weight | 1.5Kg |
| LED Indicators | 1 Power Indicator, 4 Data LED Indicators |
| Accessories | PC USB data cable X1, Power Cable X1, External Power Supply X1 |
Digital Evidence Management Software (Client) :
Data Upload: To collect video/photos/log files from police body worn Cameras.
User Management: To bind camera with specified user account.
Data Management: Easily search the specified data with date or keyword.
OS Compatibility: Database SQL2012 Compatible with WIN10/8/7
