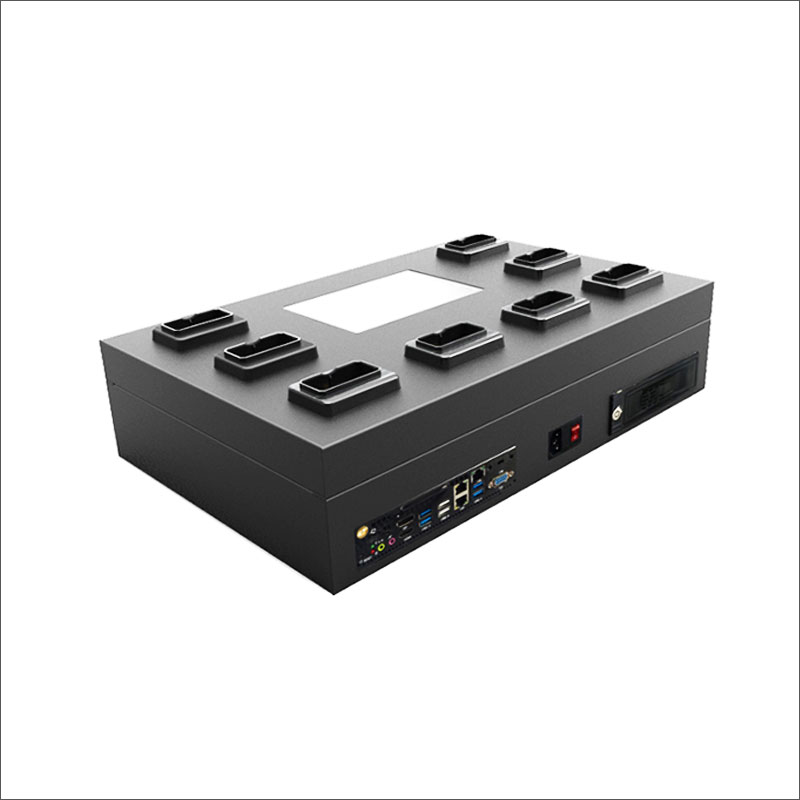

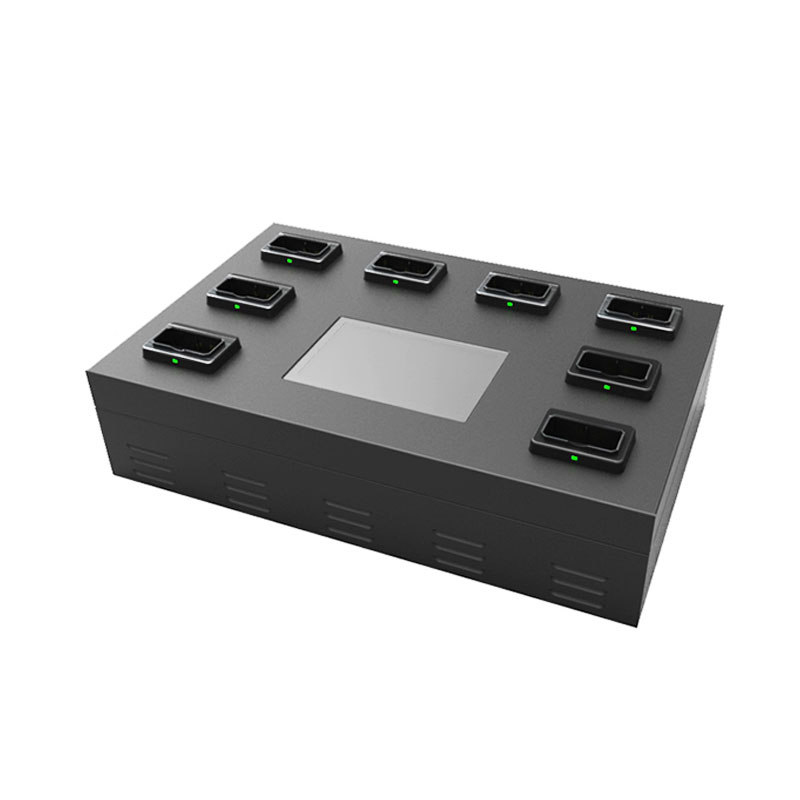

8Ports Desktop Docking Station NVS10-C
Model: NVS10-C
- All-metal structure, durable and tough.
- With overload voltage and instantaneous current protection. Each port provides up to 2.0A current.

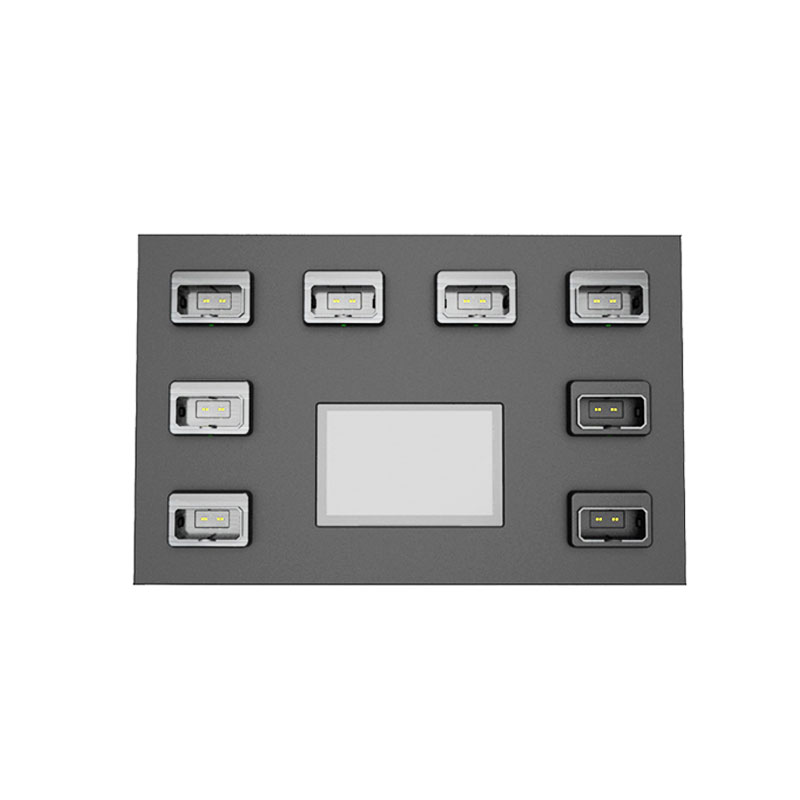

- 8 fixed slots for the body camera
- Pogo Pin connector, steadily connected.
- 4 air vents for the motherboard. Effective control from overheat.
- With main switch to power on/off the whole system.

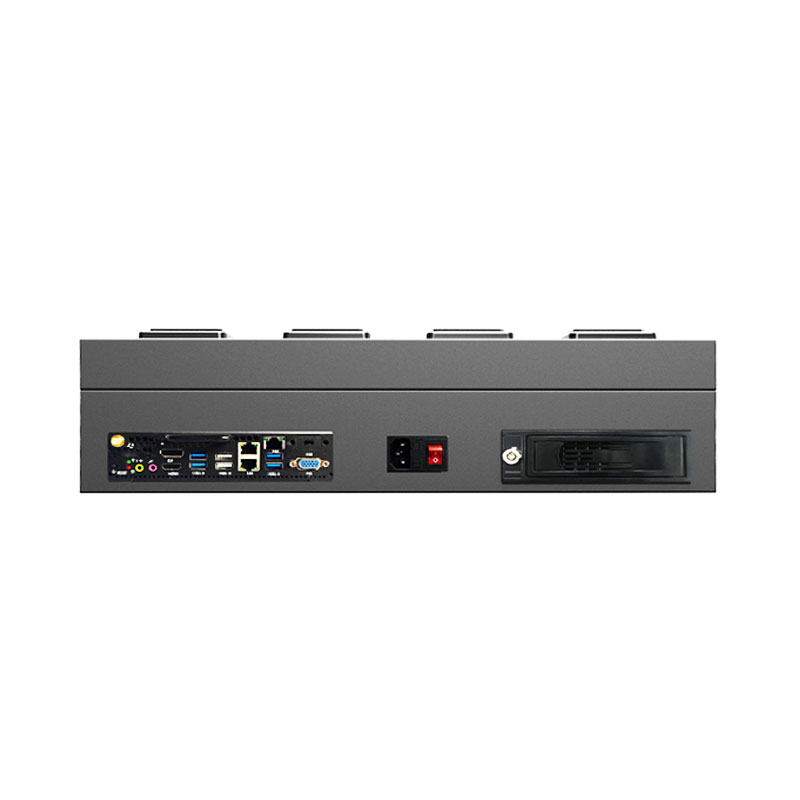

- More than 4 USB Ports, HDMI, VGA Output, 1Gb Rj45.
- Fast speed, – 1900/I3/I5 GHz.
- 2/4/6Tb internal HDD with security lock.

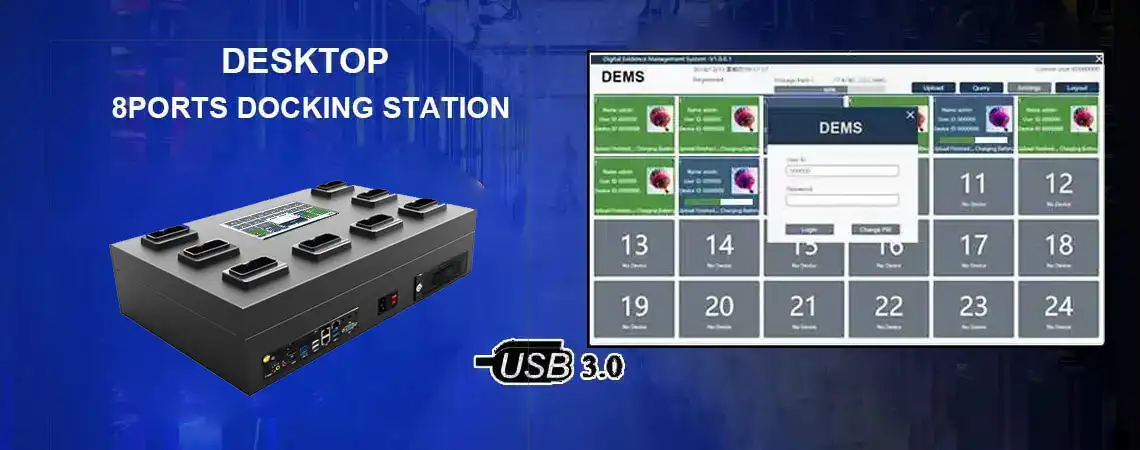

8ports Desktop Docking Station NVS10-C Overview:
The 8ports docking station is the latest charging and data uploading device, which can connect up to 8 cameras via USB3.0 port, compatible with the most of police body cameras in the market, In addition to total power of docking reach 120W, each port can provide up to 2.0A of self-adaption current, according to the connected devices, Users only need an office computer, without cumbersome wiring, it features multi-device data collection and charging.
How to use the docking station?
1, power on the docking station.
2, docking/connect the body camera one by one, then data will be uploaded automatically.
DEMS Data query:
Once the docking station has uploaded the camera data, you can use the DEMS management software to query the upload date, camera ID, and file name, and manage the tagged files.
Filter functions: Filtrate by User name, User ID, Department, Date, Video Type and Tag, as well as the Keywords. Tick the checkbox of filter items to activate it. For example, if user want to view the video of User ID 000000 within today, he need to tick the “User Name”, “Date” and “Video Type”. Then click “Query” button by DEMS.
DEMS Tag file:
User can click “Tag” button to mark the file as an important file by DEMS, The file details will show the “Tag” in red. Click “Tag” again to cancel the important mark
DEMS Delete file:
Delete function is available under admin account. Other user role does not have permission to delete files by DEMS, unless the admin assign this function for it.
NVS10-C Parameters:
| Name | |
|---|---|
| Screen | 7 inch TFT LCD touch screen |
| System | Window 10 |
| CPU | J1900 / Intel I3 7th / Intel I5 7th Generation (optional ) |
| Harddisk 1 | Standard 4TB removable HDD 3.5 inch |
| Harddisk 2 | Standard 128GB built-in SSD |
| RAM | 8GB |
| Interface | 1X Rj45, 4X USB, HDMI, VGA, Audio |
| Input | 100-120V AC 2.0A, 200- 240V AC 1.2A (Optional) |
| Feature | All-metal structure, it is durable and tough Fully compatible with USB2.0 and USB3.0 With dual protection on the output, it can protect your connected device from overload Support overload voltage and instantaneous current protection Each port provides up to 2.0A current |
| Dimension | 510mm*310mm*130 mm |
| Weight | 8 kgs |
| Accessories | Power cable x 1 User Manual x 1 |
