Body Worn Camera NVS4-D
Model: NVS4-D
Screen: No LCD
Main configuration: WIFI 6+GPS+Bluetooth Optional.
Video Resolution: 4K Video resolution.
Recording Time: Continuous recording time: 17 hours at 1080P.
Uploading Mode: Automatic download data to CMSV server by WiFi optional.
Data Protection: AES/RSA and USB encryption.
Charging interface: USB-C + Dock.
Memory: 64GB, 128GB, 256GB Optional
Visual control function: WiFi Real Time Monitoring, SOS, GPS Tracking, PTT Intercom by CMSV optional.
Mainstream protocols: RTMP/RTSP.
Body Worn Camera Overview：
The Body Worn Camera NVS4-D is a new stand-alone recording camera with cutting-edge technology development, exquisite appearance design, powerful H.265 and AES256 encryption, protecting the security and originality of audio and video, IP67 waterproof level, 15 hours continuous recording video at 1080P, 4K video, and it supports the best WIFI live communication technology (AP, STA, RTSP, RTMP), the camera and the visual scheduling platform can interact and communicate anytime and anywhere, ensuring that law enforcement officers get the fastest rescue and support in an emergency.
Wi-Fi live streaming:
The body camera supports WIFI6 2.4G & 5G multi-protocol connection ( CMSV / RTSP / RTMP )
CMSV (optional): After setting the camera to your WiFi network, however, the camera video will be displayed with the CMSV platform.
RTSP: When you use "cam manager software" to set the camera to your WIFI network, however, you can view RTSP live streaming via VLC or mobile APP.
RTMP: After setting the camera to your WiFi network and RTMP server IP, you can view RTMP live streaming via your RTMP server.
GPS tracking:
When the body worn camera is connected to WIFI network, However, the camera will receive a GPS signal. You can check the GPS location through GPS player.
Video/Photograph/Audio Recording:
The body worn camera supports audio, video and photograph functions. The video supports 4K resolution (2160P, 1440P, 1296P, 1080P, 720P, 480P).
Video AES256 Encryption Protection:
After you set the body camera encryption, However, the recorded video will be protected by AES 256 encryption. No one can play or edit the video.
Low Power Consumption, More Battery Life:
The body camera built-in 4400mAh high capacity ion battery, without changing the battery design, super long standby, super large capacity battery, continuous 17 hours of video, to ensure that law enforcement is responsible for a long time.

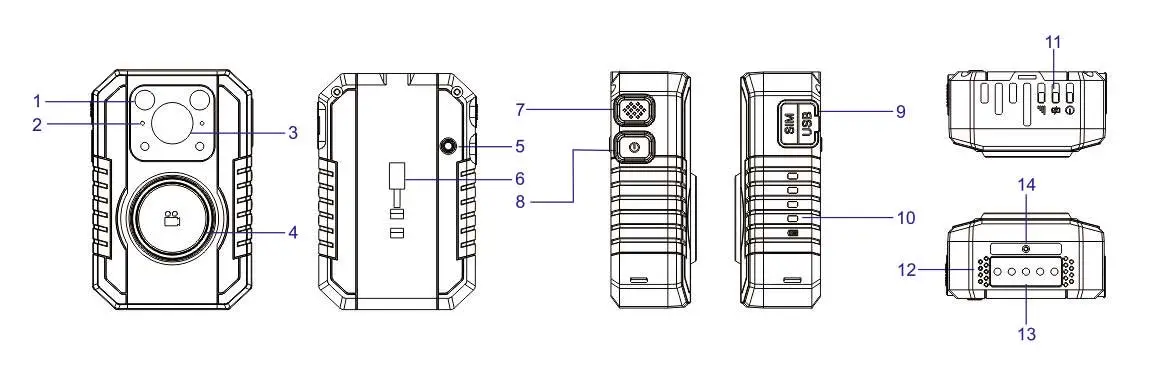

Body Worn Camera Button Function：
1. 850nm Infrared | 2. Microphones x 1 | 3. Camera Lens | 4. Record Button With LED Ring | 5. Reset button | 6. Clip Fixing Slot | 7. Photo Button | 8. Power button | 9. USB port / Nano SIM card for 4G (Optional) | 10. LED indicators for battery life | 11. Power LED/Charging LED/ Platform LED | 12. Speaker | 13. Pogo Pin Connectors | 14. Serial Numbers
Body Worn Camera Parameters:
| RECORDING | |
|---|---|
| Video Resolution | 2160P(30FPS)/1440P(30FPS)/1296P(30 FPS)/ 1080P(30 FPS)/ 720P(30 FPS)/ 480P(30 FPS) |
| Screen | No Screen |
| Video Format | MP4 with H.264/ H.265 |
| Recording Angle | Wide Angle 140 degrees |
| Audio | High Quality Built-in Dual Microphone. |
| Water Mark | User ID 6 digits, Device ID 7digits Time and date Stamp Embedded into Video. add logo to video with user (optional) |
| Record prompts | Front Button with LED Indicator and Voice prompts |
| Record Button | TPU raw material button: Front Big Button ( One-click quick to record ) |
| Other Button | TPU raw material button: Photo Button, Power Button |
| Video Duration | 1 min, 5 mins, 10 mins, 15 mins, 20 mins, 30 mins |
| Recording Time | Above 17 hours at 1080P (4G&WiFi off) |
| Pre-Record/Post Record | Pre-Record: OFF/ 10s/ 20s/ 30s/ 1min/ 2mins, Post Record: OFF/ 5s/ 10s/ 20s/ 1min/ 3mins/ 5mins |
| Activation prompt | Vibrator & Speaker & LED Indicators |
| PHOTOGRAPH | |
| Camera Format | JPEG |
| Snap Shot | Capture Photos During Video Recording |
| Photo Resolution | JPEG. 48M/32M/16M/8M/4M Megapixels |
| BATTERY | |
| Type | Built-in 4400mAH Lithium- (LiCoO 2) |
| Charging Time | 300 minutes |
| Battery Level | Blue LED Indicators with 4 Levels (25%~50%~75%~100%) |
| Wireless | |
| WiFi | WiFi 6 / 2.4GHz + 5GHz (RTSP / RTMP / Lordcam APP / CMSV platform) |
| Bluetooth (Optional) | BLE 5.4 （Supports Holster trigger to activate camera to record video） |
| OTHERS | |
| Storage Capacity | 64G/128G/256GB/512GB |
| IR Light | 2PCS 850nm Large Infrared LED |
| Auto IR Control | Support, Range 10M |
| Speaker | Waterproof and High-power Speaker |
| Waterproof | IP67 |
| Clip | High Quality Metal Clip with 360° Rotation |
| Password Protection | Requires Password to Access to Video |
| Dimensions | 83×55×30mm |
| Weight | 145 Grams |
| Working Temperature | -20C° ~ 65C° |
| Storage temperature | -20C° ~ 65C° |
| Video Encryption | Support AES256 |
| GPS ( optional ) | GPS / Glonass |
| ACCESSORIES | |
| Standard Accessories | USB cable, Charger, Single Dock, Crocodile Clip, Manual |
| Other Accessories | Magnet Mount, Lock Clip, Car Mount, Chest Harness, Earphone, Bluetooth holster sensor |
